IS31FL3206 - 12-CHANNEL LED DRIVER

ISSI

📥 Download Datasheet

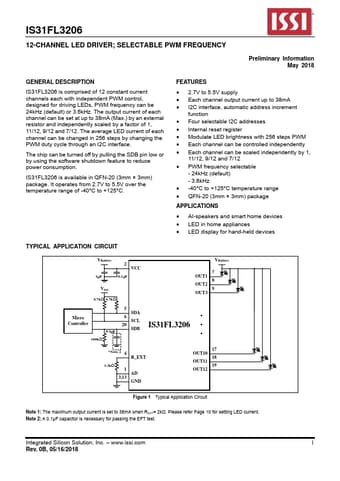

IS31FL3206 Datasheet Preview — Preview of IS31FL3206 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IS31FL3206
Manufacturer	ISSI
File Size	277.02 KB
Description	12-CHANNEL LED DRIVER
Datasheet	IS31FL3206-ISSI.pdf

IS31FL3206 Product details

Description

IS31FL3206 is comprised of 12 constant current channels each with independent PWM control, designed for driving LEDs, PWM frequency can be 24kHz (default) or 3.6kHz.

Features

2.7V to 5.5V supply.
Each channel output current up to 38mA.
I2C interface, automatic address increment function.
Four selectable I2C addresses.
Internal.
