IS31FL3719, 16x8 / 15x9 MATRIX LED DRIVER

IS31FL3719 16×8/15×9 MATRIX LED DRIVER May 2022 GENERAL .
FEATURES The IS31FL3719 is a general purpose 15×9 or 16×8 LED Matrix driver programmable via 1MHz I2C compatible interface.

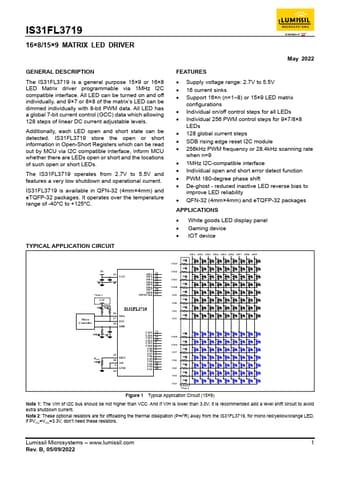

datasheet Preview Page 1 from Datasheet4u.com

IS31FL3719-Lumissil.pdf

IS31FL3719 Datasheet Preview — Preview of IS31FL3719 PDF

Datasheet Details

Part number:

IS31FL3719

Manufacturer:

Lumissil

File Size:

830.87 KB

Description:

16x8 / 15x9 MATRIX LED DRIVER

Features

* The IS31FL3719 is a general purpose 15×9 or 16×8 LED Matrix driver programmable via 1MHz I2C compatible interface. All LED can be turned on and off individually, and 9×7 or 8×8 of the matrix’s LED can be dimmed individually with 8-bit PWM data. All LED has a global 7-bit current control (GCC) data

Applications

* White goods LED display panel
* Gaming device
* IOT device TYPICAL APPLICATION CIRCUIT 5V 1μF 23 VCC 0.1μF
* Note 1 3.3V SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW9/CS16 22 21 20 19 18 17 16 15 14 2kΩ 2kΩ Micro Controller 100kΩ 0.1μF RISET 10kΩ IS31FL3719 26 SDA 27 SCL
