IS31FL3731C Datasheet - Lumissil

IS31FL3731C, AUDIO MODULATED MATRIX LED DRIVER

IS31FL3731C AUDIO MODULATED MATRIX LED DRIVER GENERAL .
The IS31FL3731C is a compact LED driver for 144 single LEDs.

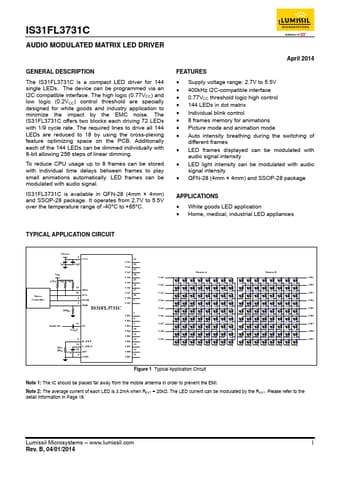

datasheet Preview Page 1 from Datasheet4u.com

IS31FL3731C-Lumissil.pdf

IS31FL3731C Datasheet Preview — Preview of IS31FL3731C PDF

Datasheet Details

Part number:

IS31FL3731C

Manufacturer:

Lumissil

File Size:

803.60 KB

Description:

AUDIO MODULATED MATRIX LED DRIVER

Features

* Supply voltage range: 2.7V to 5.5V
* 400kHz I2C-compatible interface
* 0.77VCC threshold logic high control
* 144 LEDs in dot matrix
* Individual blink control
* 8 frames memory for animations
* Picture mode and animation mode
* Auto intensity breathing during the s

Applications

* White goods LED application
* Home, medical, industrial LED appliances TYPICAL APPLICATION CIRCUIT Micro Controller VBattery 1F 2 VCC 0.1 F VDD 4.7k 4.7k 4.7k 100k 19 SDA 20 SCL 4 INTB 3 SDB IS31FL3731C Audio In 17 IN 0.22 F 6 R_EXT 16 REXT 20k 0.1 F C_FILT 18 AD 5 GND 21
