- Part number
- IS31FL3733
- Manufacturer
- Lumissil
- File Size
- 907.62 KB
- Datasheet
- IS31FL3733-Lumissil.pdf
- Description
- 12x16 DOTS MATRIX LED DRIVER
IS31FL3733 Description
IS31FL3733 12×16 DOTS MATRIX LED DRIVER WITH INDIVIDUAL AUTO BREATH FUNCTION August 2022 GENERAL .
The IS31FL3733 is a general purpose 12×16 LEDs matrix driver with 1/12 cycle rate.
IS31FL3733 Features
* 3 Auto Breathing Modes which are noted as ABM-1, ABM-2 and ABM-3. For each Auto Breathing Mode, there are 4 timing characters which include current rising / holding / falling / off time and 3 loop characters which include Loop-Beginning / Loop-Ending / Loop-Times. Every LED can be configured to be a
IS31FL3733 Applications
* Hand-held devices for LED display
* Gaming device (Keyboard, Mouse etc. )
* LED in white goods application
TYPICAL APPLICATION CIRCUIT

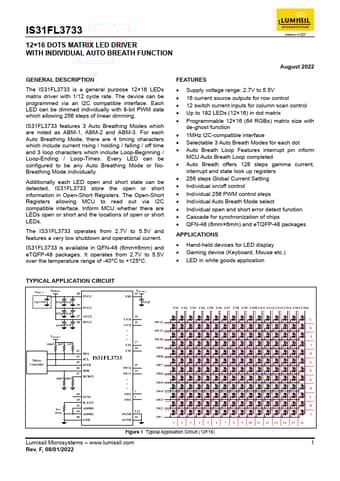

Figure 1 Typical Application Circuit (12×16)
Lumissil Microsystems
* www. lumissil. com
1
Rev. F, 08/01/2022
IS31FL3733
TYPICAL
