IS31FL3730, AUDIO MODULATED MATRIX LED DRIVER

IS31FL3730 AUDIO MODULATED MATRIX LED DRIVER May 2018 GENERAL .
IS31FL3730 is a LED matrix driver which features an audio modulation display mode and a general LED dot matrix display mode.

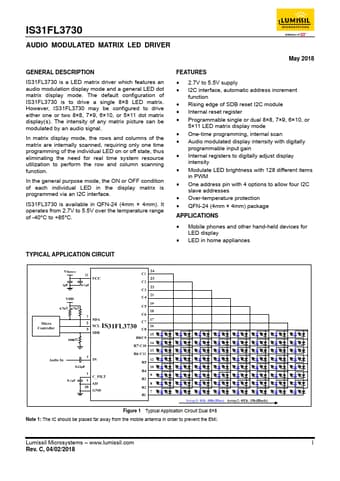

datasheet Preview Page 1 from Datasheet4u.com

IS31FL3730-Lumissil.pdf

IS31FL3730 Datasheet Preview — Preview of IS31FL3730 PDF

Datasheet Details

Part number:

IS31FL3730

Manufacturer:

Lumissil

File Size:

493.63 KB

Description:

AUDIO MODULATED MATRIX LED DRIVER

Features

* an audio modulation display mode and a general LED dot matrix display mode. The default configuration of IS31FL3730 is to drive a single 8×8 LED matrix. However, IS31FL3730 may be configured to drive either one or two 8×8, 7×9, 6×10, or 5×11 dot matrix display(s). The intensity of any matrix picture

Applications

* Mobile phones and other hand-held devices for LED display
* LED in home appliances TYPICAL APPLICATION CIRCUIT Figure 1 Typical Application Circuit Dual 8×8 Note 1: The IC should be placed far away from the mobile antenna in order to prevent the EMI. Lumissil Microsystems
* www.
