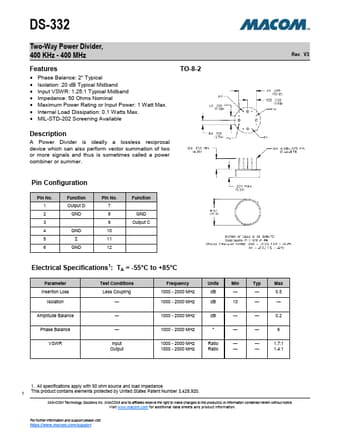

Part number:
DS-332
Manufacturer:
MA-COM
File Size:
442.42 KB
Description:
Two-way power divider.
* Phase Balance: 2o Typical
* Isolation: 20 dB Typical Midband
* Input VSWR: 1.25:1 Typical Midband
* Impedance: 50 Ohms Nominal
* Maximum Power Rating or Input Power: 1 Watt Max.
* Internal Load Dissipation: 0.1 Watts Max.
* MIL-STD-202 Screening Available Description A
DS-332
MA-COM
442.42 KB
Two-way power divider.
