DS-323 Datasheet, Divider, Tyco Electronics

DS-323 Features

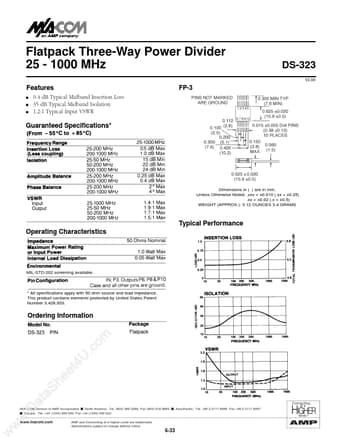

Divider q q q DS-323 V2.00 FP-3 0.4 dB Typical Midband Insertion Loss 35 dB Typical Midband Isolation 1.2:1 Typical Input VSWR Guaranteed Speciﬁcations
Dimensions in ( ) are in mm

PDF File Details

Part number:

DS-323

Manufacturer:

Tyco Electronics

File Size:

154.84kb

Download:

📄 Datasheet

Description:

Flatpack three-way power divider.
