DS-313 - Two-Way Power Divider

Tyco Electronics

📥 Download Datasheet

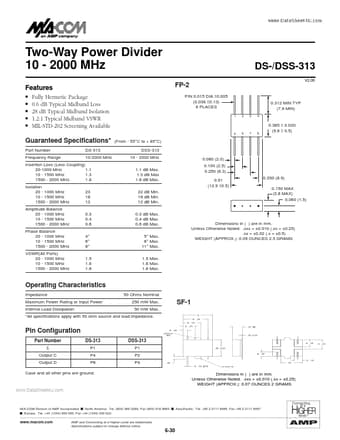

DS-313 Datasheet Preview — Preview of DS-313 PDF

datasheet Preview Page 2

Datasheet Details

Part number	DS-313
Manufacturer	Tyco Electronics
File Size	135.43 KB
Description	Two-Way Power Divider
Datasheet	DS-313_TycoElectronics.pdf

DS-313 Product details

Features

q q q q q DS-/DSS-313 V2.00 FP-2 PIN 0.015 DIA ±0.005 (0.038 ±0.13) 8 PLACES 1 2 3 4 Fully Hermetic Package 0.6 dB Typical Midband Loss 28 dB Typical Midband Isolation 1.2:1 Typical Midband VSWR MIL-STD-202 Screening Available (From - 55°C to + 85°C) DSS-313 10 - 2000 MHz 1.1 dB Max. 1.3 dB Max 1.8 dB Max. 22 dB Min. 18 dB Min. 12 dB Min. 0.3 dB Max. 0.4 dB Max. 0.6 dB Max. 5° Max. 8° Max. 11° Max. 1.5 Max. 1.6 Max. 1.8 Max. 0.312 MIN TYP (7.9 MIN) 5 6 7 8 0.385 ± 0.020 (9.8 ± 0.5) Gua.
