Part number:
DS-318
Manufacturer:
Tyco Electronics
File Size:
133.32 KB
Description:

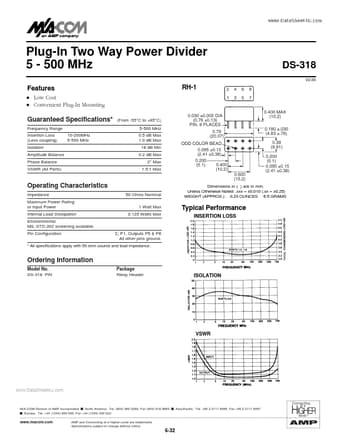

Plug-in two way power divider.
* q q DS-318 V2.00 RH-1 Low Cost Convenient Plug-In Mounting (From -55°C to +85°C) 5-500 MHz 0.5 dB Max 1.0 dB Max 18 dB Min 0.2 dB Max 2° Max 1.5:1 Max Guaranteed Specifications
* Frequency Range Insertion Loss (Less coupling) Isolation Amplitude Balance Phase Balance VSWR (All Ports) 10-200MHz
DS-318
Tyco Electronics
133.32 KB
Plug-in two way power divider.
