MA4P1200NM-401T, MA4P-MA - High Power PIN Diodes

MA-COM

📥 Download Datasheet

MA4P1200NM-401T Datasheet Preview — This datasheet PDF includes multiple part numbers: MA4P1200NM-401T, MA4P-MA. Please refer to the document for exact specifications by model.

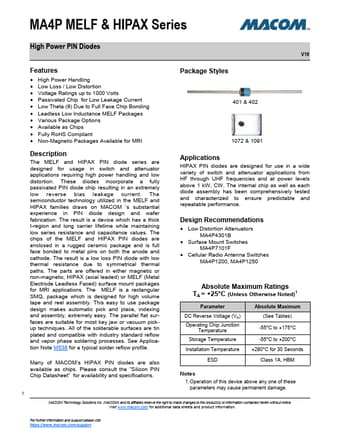

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MA4P1200NM-401T, MA4P-MA
Manufacturer	MA-COM
File Size	2.23 MB
Description	High Power PIN Diodes
Datasheet	MA4P-MA-COM.pdf
Note	This datasheet PDF includes multiple part numbers: MA4P1200NM-401T, MA4P-MA. Please refer to the document for exact specifications by model.

MA4P1200NM-401T Product details

Description

The MELF and HIPAX PIN diode series are designed for usage in switch and attenuator applications requiring high power handling and low distortion.

Features

High Power Handling.
Low Loss / Low Distortion.
Voltage Ratings up to 1000 Volts.
Passivated Chip for Low Leakage Current.
Low Theta (θ) Due to Full Face Chip Bonding.
Leadless Low Inductance MELF Packages.
Various Package Options.
Available as Chips.
Fully RoHS Compliant.
Non-Magnetic Packages Available for MRI Package Styles 401 & 402 1072 & 1091.
