MA4P1250NM-1072T

High Power PIN Diodes

MA4P1250NM-1072T Features

* High Power Handling

* Low Loss / Low Distortion

* Voltage Ratings up to 1000 Volts

* Passivated Chip for Low Leakage Current

* Low Theta (θ) Due to Full Face Chip Bonding

* Leadless Low Inductance MELF Packages

* Various Package Options

* Available as Chips

* Fu

MA4P1250NM-1072T General Description

The MELF and HIPAX PIN diode series are designed for usage in switch and attenuator applications requiring high power handling and low distortion. These diodes incorporate a fully passivated PIN diode chip resulting in an extremely low reverse bias leakage current. The semiconductor technology utili.

MA4P1250NM-1072T Datasheet (2.23 MB)

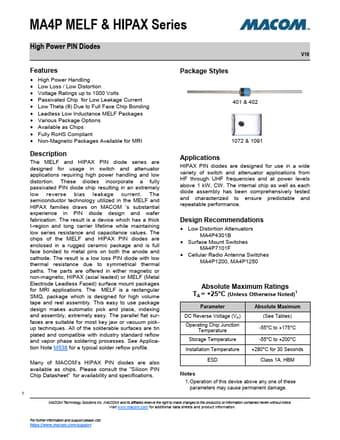

Preview of MA4P1250NM-1072T PDF

Datasheet Details

Part number:

MA4P1250NM-1072T

Manufacturer:

MA-COM

File Size:

2.23 MB

Description:

High power pin diodes.
