MA4P1450-1091T, MA4P-MA High Power PIN Diodes

MA4P1450-1091T Description

MA4P MELF & HIPAX Series High Power PIN Diodes V16 .
The MELF and HIPAX PIN diode series are designed for usage in switch and attenuator applications requiring high power handling and low distortion.

MA4P1450-1091T Features

* High Power Handling
* Low Loss / Low Distortion
* Voltage Ratings up to 1000 Volts
* Passivated Chip for Low Leakage Current
* Low Theta (θ) Due to Full Face Chip Bonding
* Leadless Low Inductance MELF Packages
* Various Package Options
* Available as Chips
* Fu

MA4P1450-1091T Applications

* requiring high power handling and low distortion. These diodes incorporate a fully passivated PIN diode chip resulting in an extremely low reverse bias leakage current. The semiconductor technology utilized in the MELF and HIPAX families draws on MACOM ’s substantial experience in PIN diode design a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MA4P1450-1091T, MA4P-MA. Please refer to the document for exact specifications by model.

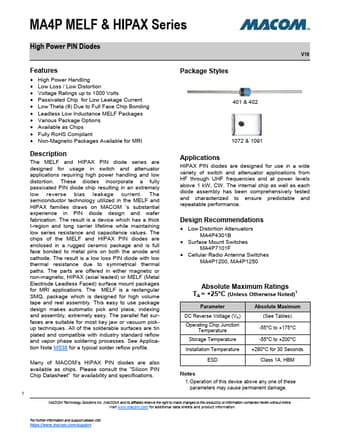

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4P1450-1091T, MA4P-MA
Manufacturer
MA-COM
File Size
2.23 MB
Datasheet
MA4P-MA-COM.pdf
Description
High Power PIN Diodes
Note
This datasheet PDF includes multiple part numbers: MA4P1450-1091T, MA4P-MA.
Please refer to the document for exact specifications by model.
