MAFL-009217-CD0AC0, MAFL-009217-CD0AC0-MA Datasheet - MA-COM

MAFL-009217-CD0AC0, MAFL-009217-CD0AC0-MA, CATV Diplex Filter

MAFL-009217-CD0AC0 CATV Diplex Filter 5 - 864 / 1128 - 1525 MHz .
M/A-COM Technology Solutions MAFL-009217CD0AC0 is a surface mount diplex filter unit designed for MoCA applications.

datasheet Preview Page 1 from Datasheet4u.com

MAFL-009217-CD0AC0-MA-COM.pdf

MAFL-009217-CD0AC0 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAFL-009217-CD0AC0, MAFL-009217-CD0AC0-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAFL-009217-CD0AC0, MAFL-009217-CD0AC0-MA

Manufacturer:

MA-COM

File Size:

101.16 KB

Description:

CATV Diplex Filter

Note:

This datasheet PDF includes multiple part numbers: MAFL-009217-CD0AC0, MAFL-009217-CD0AC0-MA.
Please refer to the document for exact specifications by model.

Features

* 75 Ohm
* SMT unit
* RoHS

Applications

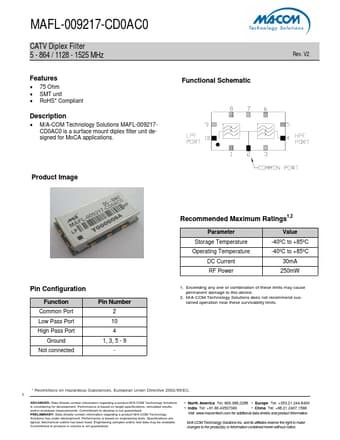

* Functional Schematic Product Image Rev. V2 Pin Configuration Function Common Port Low Pass Port High Pass Port Ground Not connected Pin Number 2 10 4 1, 3, 5 - 9 - Recommended Maximum Ratings1,2 Parameter Storage Temperature Operating Temperature DC Current RF Power Value -40ºC to +85ºC -40
