MAFL-007654-CD0A10

CATV Diplex Filter

MAFL-007654-CD0A10 Features

* 75 Ohm SMT unit Low Cost, Low Profile RoHS

* Compliant MAFL-007654-CD0A10 V1P Functional Schematic Description M/A-COM’s MAFL-007654-CD0A10 is a low cost, low profile diplex filter designed for use in CATV settop-box and cable modem applications. Technolo

MAFL-007654-CD0A10 General Description

M/A-COM’s MAFL-007654-CD0A10 is a low cost, low profile diplex filter designed for use in CATV settop-box and cable modem applications. Technology used in this design is patent pending. Pin Configuration www.DataSheet4U.com Function Common Port Low Pass Port Output Port Pin Number 5 11 21 1-4, 6-.

MAFL-007654-CD0A10 Datasheet (150.38 KB)

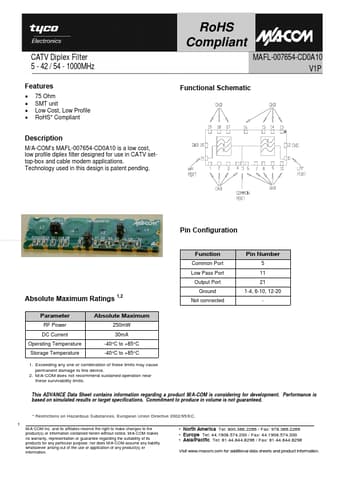

Preview of MAFL-007654-CD0A10 PDF

Datasheet Details

Part number:

MAFL-007654-CD0A10

Manufacturer:

Tyco Electronics

File Size:

150.38 KB

Description:

Catv diplex filter.
