MAFL-009272-CD0AC0, MAFL-009272-CD0AC0-MA - CATV Diplex Filter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAFL-009272-CD0AC0, MAFL-009272-CD0AC0-MA. Please refer to the document for exact specifications by model.

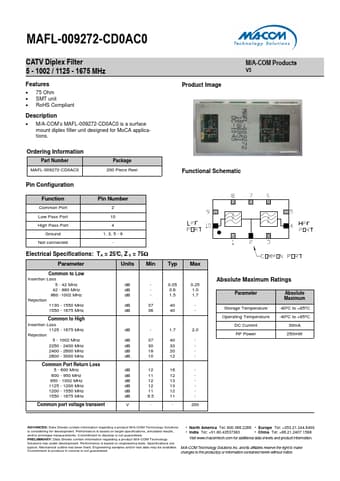

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MAFL-009272-CD0AC0, MAFL-009272-CD0AC0-MA
Manufacturer MA-COM
File Size 289.46 KB
Description CATV Diplex Filter
Datasheet download datasheet MAFL-009272-CD0AC0-MA-COM.pdf
Note This datasheet PDF includes multiple part numbers: MAFL-009272-CD0AC0, MAFL-009272-CD0AC0-MA.
Please refer to the document for exact specifications by model.

MAFL-009272-CD0AC0 Product details

Description

M/A-COM’s MAFL-009272-CD0AC0 is a surface mount diplex filter unit designed for MoCA applications.Product Image M/A-COM Products V5 Ordering Information Part Number MAFL-009272-CD0AC0 Package 200 Piece Reel Pin Configuration Function Common Port Low Pass Port High Pass Port Ground Not connected Pin Number 2 10 4 1, 3, 5 - 9 - Electrical Specifications: TA = 25°C, Z 0 = 75Ω Parameter Units Min Common to Low Insertion Loss 5 - 42 MHz 42 - 860 MHz 860 -1002 MHz Rejection 1130
