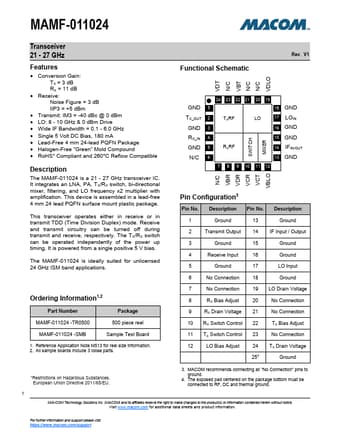

MAMF-011024 Datasheet, Transceiver, MA-COM

MAMF-011024 Features

• Transceiver
• Conversion Gain: TX = 3 dB RX = 11 dB
• Receive: Noise Figure = 3 dB IIP3 = +5 dBm
• Transmit: IM3 = -40 dBc @ 0 dBm
• LO: 8 - 10 GHz & 0 dBm Drive

PDF File Details

Part number:

MAMF-011024

Manufacturer:

MA-COM

File Size:

794.81kb

Download:

📄 Datasheet

Description:

Transceiver. The MAMF-011024 is a 21 - 27 GHz transceiver IC. It integrates an LNA, PA, TX/RX switch, bi-directional mixer, filtering, and LO freq

MAMF-011024 Application

• Applications Ordering Information1,2 Part Number Package MAMF-011024 -TR0500 500 piece reel MAMF-011024 -SMB Sample Test Board 1. Reference
