MAMF-011146 Datasheet, Switch, MACOM

MAMF-011146 Features

  • Switch
  • Broadband Performance, 20 to 44 GHz
  • Low Loss <1.0 dB
  • High Isolation >34 dB
  • Up to 13 W CW Power, +85°C
  • 23 dBm Power Handling in Terminat

PDF File Details

Part number:

MAMF-011146

Manufacturer:

MACOM

File Size:

826.37kb

Download:

📄 Datasheet

Description:

Ka-band high power terminated spdt pin switch. The MAMF-011146 is a high power SPDT PIN diode switch with integrated driver in 5 x 4 mm PQFN package. This broadband, high linearity

Datasheet Preview: MAMF-011146 📥 Download PDF (826.37kb)

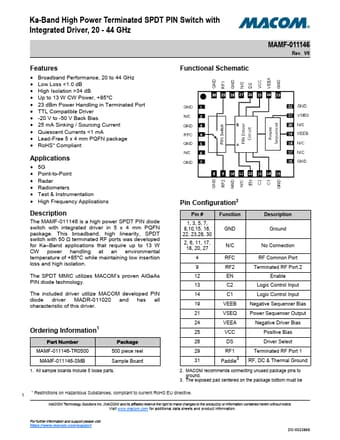

Page 2 of MAMF-011146 Page 3 of MAMF-011146

MAMF-011146 Application

  • Applications
  • 5G
  • Point-to-Point
  • Radar
  • Radiometers
  • Test & Instrumentation
  • High Frequency A

TAGS

MAMF-011146
Ka-Band
High
Power
Terminated
SPDT
PIN
Switch
MACOM
