MAMF-010614 Integrated SPDT Switch and LNA

The MAMF-010614 is a multi-function MMIC which includes a SPDT switch and LNA with bypass mode for the RX path. This part would typically be used on the front end of WLAN 802.11a,n,ac modules where small size is critical. The MAMF-010614 delivers high isolation between TX and RX paths, low TX insert.

MAMF-010614 Features

*  802.11a,n,ac Applications

*  0.9 dB TX Insertion Loss

*  19 dB RX Isolation

*  12 dB RX Gain

*  2.2 dB Noise Figure

*  10 mA Current

*  -40 dB EVM @ 23 dBm Input (802.11ac 80 MHz / 256 QAM)

*  Lead Free 2 mm 12-lead STQFN package

*  RoHS

* Compliant and 260°

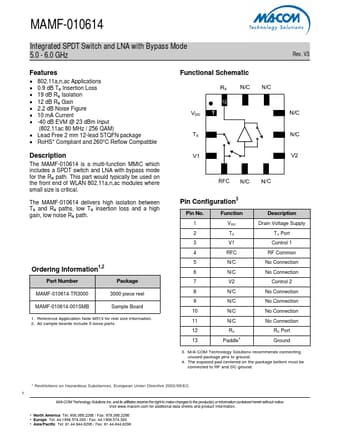

MAMF-010614-MA-COM.pdf

MAMF-010614 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAMF-010614, MAMF-010614-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAMF-010614, MAMF-010614-MA

Manufacturer:

MA-COM

File Size:

550.27 KB

Description:

Integrated spdt switch and lna.

Note:

This datasheet PDF includes multiple part numbers: MAMF-010614, MAMF-010614-MA.
Please refer to the document for exact specifications by model.
