MAMDCC0002 Datasheet, Driver, Tyco

MAMDCC0002 Features

  • Driver n n n n n n n n n CSP-9 Linearizes M/A-COM’s PIN Diode Vector Modulators Over a 360° Phase Range Dual Channels Allow One Driver per Vector Modulator Output Currents up to 12 mA Operat

PDF File Details

Part number:

MAMDCC0002

Manufacturer:

Tyco

File Size:

340.21kb

Download:

📄 Datasheet

Description:

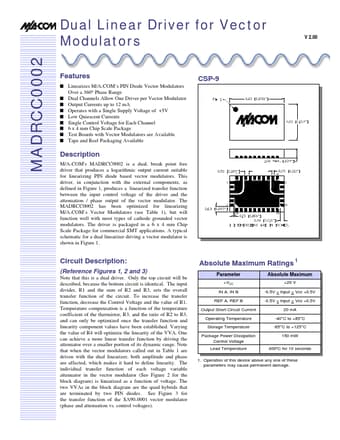

Dual linear driver. M/A-COM's MADRCC0002 is a dual, break point free driver that produces a logarithmic output current suitable for linearizing PIN diode

Datasheet Preview: MAMDCC0002 📥 Download PDF (340.21kb)
Page 2 of MAMDCC0002 Page 3 of MAMDCC0002

MAMDCC0002 Application

  • Applications A typical schematic for a dual linearizer driving a vector modulator is shown in Figure 1. Circuit Description: (Reference Figures 1,
