PH3134-20L

Radar Pulsed Power Transistor

PH3134-20L Features

* NPN silicon microwave power transistors

* Common base configuration

* Broadband Class C operation

* High efficiency inter-digitized geometry

* Diffused emitter ballasting resistors

* Gold metallization system

* Internal input and output imped

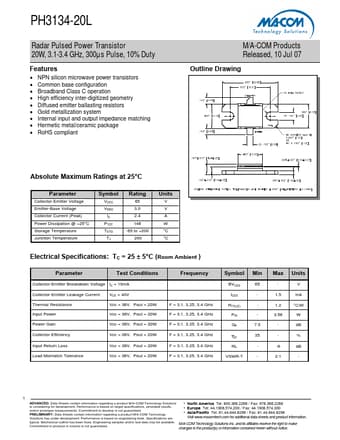

PH3134-20L Datasheet (97.94 KB)

Preview of PH3134-20L PDF

Datasheet Details

Part number:

PH3134-20L

Manufacturer:

MA-COM

File Size:

97.94 KB

Description:

Radar pulsed power transistor.
