PH3134-30S

Radar Pulsed Power Transistor/ 3OW/ lms Pulse/ 10% Duty 3.1 - 3.4 GHz

PH3134-30S Features

* l l l l l l l l NPN Silicon Microwave Power Transistor Common Base Configuration Broadband Class C Operation High Efficiency Interdigitated Geometry Diffused Emitter Ballasting Resistors Gold Metalization System Internal Input and Output Impedance Matching Hermetic Metal/Ceramic Package I .iOO (2.

PH3134-30S Datasheet (149.75 KB)

Preview of PH3134-30S PDF

Datasheet Details

Part number:

PH3134-30S

Manufacturer:

Tyco Electronics

File Size:

149.75 KB

Description:

Radar pulsed power transistor/ 3ow/ lms pulse/ 10% duty 3.1 - 3.4 ghz.

📁 Related Datasheet

PH3134-10M - Radar Pulsed Power Transistor (MA-COM)
PH3134-10M Radar Pulsed Power Transistor 10W, 3.1-3.4 GHz, 100µs Pulse, 10% Duty Features  NPN silicon microwave power transistors  Common base conf.

PH3134-11S - Radar Pulsed Power Transistor/ 11 W/ lms Pulse/ 10% Duty 3.1 - 3.4 GHz (Tyco Electronics)
* an AMP pany ==5= ,,-= E ---== EF .-----z ,= Radar Pulsed Power Transistor, 11 W, lps Pulse, 10% Duty PH3134-11s 3.1 - 3.4 GHz Features NPN S.

PH3134-11S - Radar Pulsed Power Transistor (MA-COM)
PH3134-11S Radar Pulsed Power Transistor 11W, 3.1-3.4 GHz, 1µs Pulse, 10% Duty Features • NPN silicon microwave power transistors • Common base config.

PH3134-20L - Radar Pulsed Power Transistor (MA-COM)
PH3134-20L Radar Pulsed Power Transistor 20W, 3.1-3.4 GHz, 300µs Pulse, 10% Duty Features • NPN silicon microwave power transistors • Common base conf.

PH3134-55L - Radar Pulsed Power Transistor/ SW/ 300ms Pulse/ 10% Duty 3.1 - 3.4 GHz (Tyco Electronics)
an AMP pany Radar Pulsed Power Transistor, SW, 300~s Pulse, 10% Duty 3.1 - 3.4 GHz PH3134-55L Features NPN Silicon Microwave Power Transistor Comm.

PH3134-55L - Radar Pulsed Power Transistor (MA-COM)
PH3134-55L Radar Pulsed Power Transistor 55W, 3.1-3.4 GHz, 300µs Pulse, 10% Duty Features • NPN silicon microwave power transistors • Common base conf.

PH3134-65M - Radar Pulsed Power Transistor/ 65W/ 1OOms Pulse/ 10% Duty 3.1 - 3.4 GHz (Tyco Electronics)
,-=r=-= ---== ZY * = .-----r f = anAMPpany Radar Pulsed Power Transistor, 65W, 1OOp Pulse, 10% Duty PH3134-65M 3.1 - 3.4 GHz Features l l l l l.

PH3134-65M - Radar Pulsed Power Transistor (MA-COM)
PH3134-65M Radar Pulsed Power Transistor 65W, 3.1-3.4 GHz, 100µs Pulse, 10% Duty Features • NPN silicon microwave power transistors • Common base conf.

TAGS

PH3134-30S Radar Pulsed Power Transistor 3OW lms Pulse 10 % Duty 3.1 3.4 GHz Tyco Electronics

Image Gallery

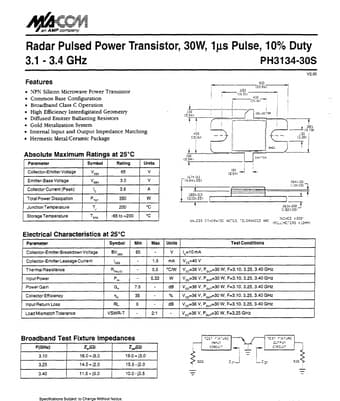

PH3134-30S Datasheet Preview Page 2
