TF309 - torque flange sensors

📥 Download Datasheet

TF309 Datasheet Preview — Preview of TF309 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TF309
Manufacturer	MAGTROL
File Size	1.18 MB
Description	torque flange sensors
Datasheet	TF309-MAGTROL.pdf

TF309 Product details

Description

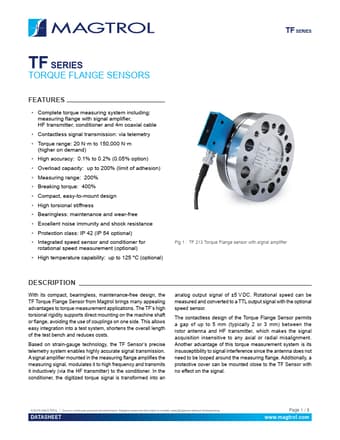

With its compact, bearingless, maintenance-free design, the TF Torque Flange Se

Features

Complete torque measuring system including: measuring flange with signal amplifier, HF transmitter, conditioner and 4m coaxial cable.
Contactless signal transmission: via telemetry.
Torque range: 20 N.
m to 150,000 N.
m (higher on demand).
High accuracy: 0.1% to 0.2% (0.05% option).
Overload capacity: up to 200% (limit of adhesion).
Measuring range: 200%.
Breaking torque: 400%.
Compact, easy-to-mount design.
