TF312 torque flange sensors

With its compact, bearingless, maintenance-free design, the TF Torque Flange Se.

TF312 Features

* ▪▪ Complete torque measuring system including: measuring flange with signal amplifier, HF transmitter, conditioner and 4m coaxial cable ▪▪ Contactless signal transmission: via telemetry ▪▪ Torque range: 20 N

* m to 150,000 N

* m (higher on demand) ▪▪ High accuracy: 0.1% to 0.2% (0.05% option)

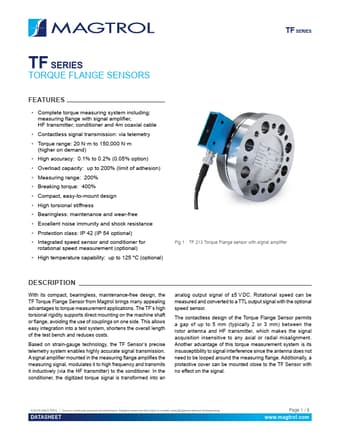

TF309-MAGTROL.pdf

TF312 Datasheet Preview — This datasheet PDF includes multiple part numbers: TF312, TF309. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TF312, TF309

Manufacturer:

MAGTROL

File Size:

1.18 MB

Description:

Torque flange sensors.

Note:

This datasheet PDF includes multiple part numbers: TF312, TF309.
Please refer to the document for exact specifications by model.
