TF318, TF309, torque flange sensors

TF SERIEs TF SERIEs torque flange sensors .
With its compact, bearingless, maintenance-free design, the TF Torque Flange Se.

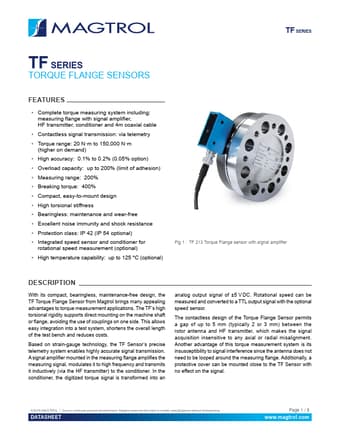

datasheet Preview Page 1 from Datasheet4u.com

TF309-MAGTROL.pdf

TF318 Datasheet Preview — This datasheet PDF includes multiple part numbers: TF318, TF309. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TF318, TF309

Manufacturer:

MAGTROL

File Size:

1.18 MB

Description:

torque flange sensors

Note:

This datasheet PDF includes multiple part numbers: TF318, TF309.
Please refer to the document for exact specifications by model.

Features

* ▪▪ Complete torque measuring system including: measuring flange with signal amplifier, HF transmitter, conditioner and 4m coaxial cable ▪▪ Contactless signal transmission: via telemetry ▪▪ Torque range: 20 N
* m to 150,000 N
* m (higher on demand) ▪▪ High accuracy: 0.1% to 0.2% (0.05% option)
