1SS133 - High Speed Switching Diode

Product Overview

MCC

📥 Download Datasheet

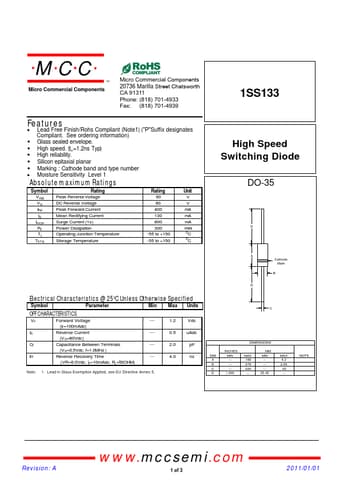

1SS133 High Speed Switching Diode by MCC - Datasheet Preview — Datasheet preview – 1SS133

Datasheet Details

Part number	1SS133
Manufacturer	MCC
File Size	464.91 KB
Description	High Speed Switching Diode
Datasheet	1SS133 Datasheet
Additional preview pages of the 1SS133 datasheet.

Product details

Features

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Glass sealed envelope.
High speed. (trr=1.2ns Typ).
High reliability.
Silicon epitaxial planar.
Marking : Cathode band and type number.
Moisture Sensitivity Level 1 Absolute maximum Ratings Symbol V RM VR IFM IO Isurge PD TJ TSTG Rating Peak Reverse Voltage DC Reverse Voltage Peak Forward Current Mean Rectifying Current Surge Curr.
