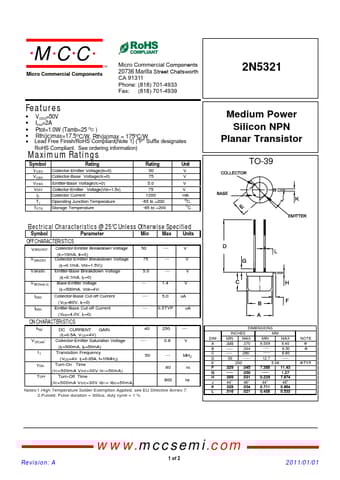

2N5321 Datasheet, Transistor, MCC

2N5321 Features

• Transistor
• VCEO=50V
• ICM=2A
• Ptot=1.0W (Tamb=25 OC )
• Rth(jc)max=17.5OC/W, Rth(ja)max = 175OC/W
• Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix

PDF File Details

Part number:

2N5321

Manufacturer:

MCC

File Size:

413.22kb

Download:

📄 Datasheet

Description:

Medium power silicon npn planar transistor.
