2SA1774-Q - PNP Transistor

Product Overview

MCC

Part number	2SA1774-Q
Manufacturer	MCC
File Size	291.31 KB
Description	PNP Transistor

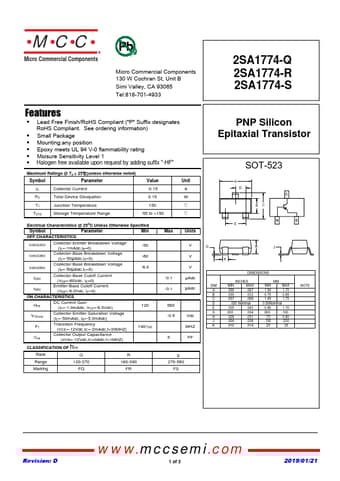

Datasheet	2SA1774-Q Datasheet
Additional preview pages of the 2SA1774-Q datasheet.

Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Small Package.
Mounting:any position.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1.
Halogen free available upon request by adding suffix "-HF" Maximum Ratings @ Ta = 25ć(unless otherwise noted) Symbol Parameter Value IC Collector Current -0.15 PD Total Device Dissipation 0.15 TJ Junction Temperature 150 TSTG.
