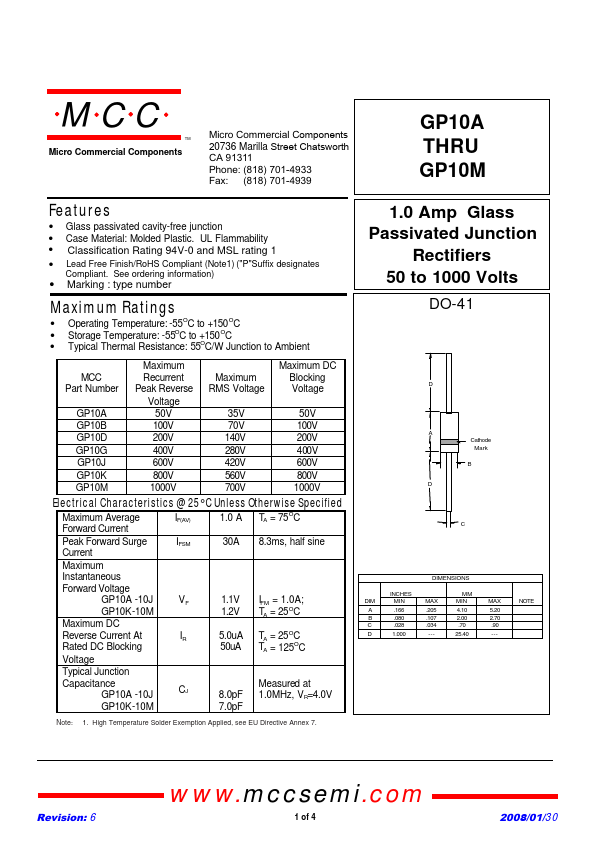

GP10A - 1.0 Amp Glass Passivated Junction Rectifiers

MCC

Datasheet Details

Glass passivated cavity-free junction.
Case Material: Molded Plastic. UL Flammability.
Classification Rating 94V-0 and MSL rating 1.
Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Marking : type number Maximum Ratings.
Operating Temperature: -55OC to +150OC.
Storage Temperature: -55OC to +150OC.
Typical Thermal Resistance: 55OC/W Junction to Ambient Maximum Maximum DC.
