📥 Download Datasheet
This datasheet PDF includes multiple part numbers: GP10B, GP10A. Please refer to the document for exact specifications by model.
Datasheet Details
- Part number
- GP10B, GP10A
- Manufacturer
- MCC
- File Size
- 416.19 KB
- Datasheet
-

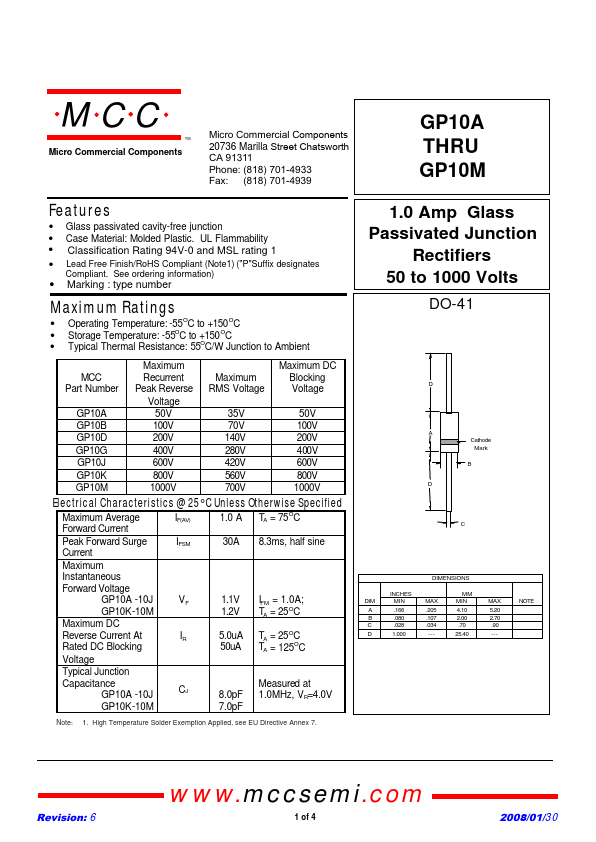

GP10A-MCC.pdf
- Description
-
1.0 Amp Glass Passivated Junction Rectifiers
- Note
- This datasheet PDF includes multiple part numbers: GP10B, GP10A.
Please refer to the document for exact specifications by model.
GP10B Product details
Features
- Glass passivated cavity-free junction.
- Case Material: Molded Plastic. UL Flammability.
- Classification Rating 94V-0 and MSL rating 1.
- Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
- Marking : type number
Maximum Ratings.
- Operating Temperature: -55OC to +150OC.
- Storage Temperature: -55OC to +150OC.
- Typical Thermal Resistance: 55OC/W Junction to Ambient
Maximum
Maximum DC.
