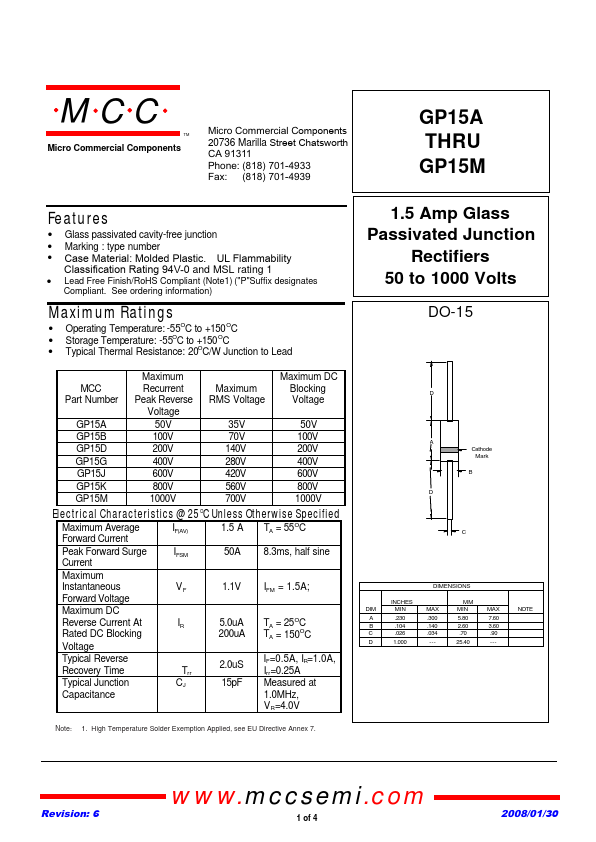

GP15A - 1.5 Amp Glass Passivated Junction Rectifiers

MCC

Datasheet Details

Part number	GP15A
Manufacturer	MCC
File Size	395.30 KB
Description	1.5 Amp Glass Passivated Junction Rectifiers
Datasheet	GP15A-MCC.pdf

Glass passivated cavity-free junction.
Marking : type number.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1.
Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Maximum Ratings.
Operating Temperature: -55OC to +150OC.
Storage Temperature: -55OC to +150OC.
Typical Thermal Resistance: 20OC/W Junction to Lead Maximum Maximum DC MCC Recurren.
