MBR20120CT - High Voltage Power Schottky Barrier Rectifier

Product Overview

MCC

📥 Download Datasheet

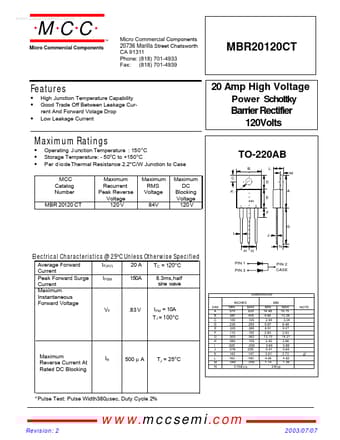

MBR20120CT High Voltage Power Schottky Barrier Rectifier by MCC - Datasheet Preview — Datasheet preview – MBR20120CT

Datasheet Details

Part number	MBR20120CT
Manufacturer	MCC
File Size	432.04 KB
Description	High Voltage Power Schottky Barrier Rectifier
Datasheet	MBR20120CT Datasheet
Additional preview pages of the MBR20120CT datasheet.

Product details

Features

High Junction Temperature Capability Good Trade Off Between Leakage Current And Forward Volage Drop Low Leakage Current 20 Amp High Voltage Power Schottky Barrier Rectifier 120Volts TO-220AB B C K E PIN 1 3.
Maximum Ratings Operating J unction Temperature : 150 °C Storage Temperature: - 5 0°C to +150°C Per d iode Thermal Resistance 2.2°C/W Junction to Case MCC Catalog Number MBR 20120 CT Maximum Recurrent Peak Reverse Voltage 120 V.
