MBR20125C

20A SCHOTTKY BARRIER RECTIFIER

MBR20125C Features

* High surge capability

* High efficiency

* Low power Loss and low forward voltage drop

* SYMBOL DIODE

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR20125CL-TA3-T MBR20125CG-TA3-T MBR20125CL-TF3-T MBR20125CG-TF3-T Note: Pin Assignment: A: Anode K: Cat

MBR20125C General Description

The UTC MBR20125C is a 20A schottky barrier rectifier, it uses UTC’s advanced technology to provide the customers with high surge capability, high efficiency, high current capability, low power loss and low forward voltage drop, etc. The UTC MBR20125C is suitable for free wheeling and polarity prote.

MBR20125C Datasheet (152.00 KB)

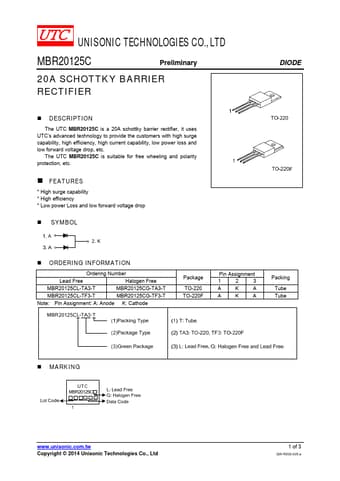

Preview of MBR20125C PDF

Datasheet Details

Part number:

MBR20125C

Manufacturer:

UTC

File Size:

152.00 KB

Description:

20a schottky barrier rectifier.
