MBR20120C

20A SCHOTTKY BARRIER RECTIFIER

MBR20120C Features

* High surge capability

* High efficiency

* Low power Loss and low forward voltage drop

* SYMBOL DIODE

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free MBR20120CL-TA3-T MBR20120CG-TA3-T MBR20120CL-TF3-T MBR20120CG-TF3-T Note: Pin Assignment: A: Anode K: Cat

MBR20120C General Description

The UTC MBR20120C is a 20A schottky barrier rectifier, it uses UTC’s advanced technology to provide the customers with high surge capability, high efficiency, high current capability, low power loss and low forward voltage drop, etc. The UTC MBR20120C is suitable for free wheeling and polarity prote.

MBR20120C Datasheet (151.23 KB)

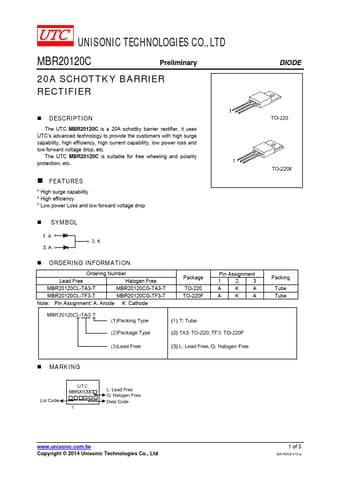

Preview of MBR20120C PDF

Datasheet Details

Part number:

MBR20120C

Manufacturer:

Unisonic Technologies

File Size:

151.23 KB

Description:

20a schottky barrier rectifier.
