MBR20120CTW, MBR20120CTW-LITE SCHOTTKY BARRIER RECTIFIER

MBR20120CTW Description

SCHOTTKY BARRIER RECTIFIER MBR20120CTW REVERSE VOLTAGE * 120 Volts FORWARD CURRENT * 20 Amperes .

MBR20120CTW Features

* Metal of silicon rectifier, majority carrier conduction
* Guard ring for transient protection
* Low power loss, high efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage, high frequency inverters, free wheeling,

MBR20120CTW Applications

* MECHANICAL DATA
* Case :TO-220AB molded plastic
* Case Material: “Green” molding compound, UL flammability classification 94V-0, (No Br. Sb. CI. ) "Halogen-free"
* Polarity : As marked on the body
* Wight : 1.927grams(Approximate)
* Lead free finish, RoHS compl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR20120CTW, MBR20120CTW-LITE. Please refer to the document for exact specifications by model.

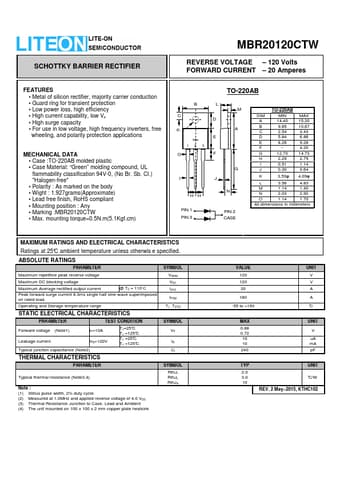

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR20120CTW, MBR20120CTW-LITE
Manufacturer
LITE-ON
File Size
48.17 KB
Datasheet
MBR20120CTW-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR20120CTW, MBR20120CTW-LITE.
Please refer to the document for exact specifications by model.
