MBR2090CT, MBR2070CT-LITE SCHOTTKY BARRIER RECTIFIER

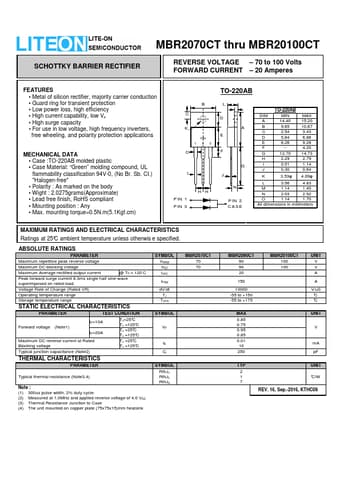

📥 Download Datasheet  Datasheet Preview Page 1

Description

SCHOTTKY BARRIER RECTIFIER MBR2070CT thru MBR20100CT REVERSE VOLTAGE * 70 to 100 Volts FORWARD CURRENT * 20 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2090CT, MBR2070CT-LITE. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBR2090CT, MBR2070CT-LITE
Manufacturer
LITE-ON
File Size
52.37 KB
Datasheet
MBR2070CT-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR2090CT, MBR2070CT-LITE.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier, majority carrier conduction
* Guard ring for transient protection
* Low power loss, high efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage, high frequency inverters, free wheeling,

Applications

* MECHANICAL DATA
* Case :TO-220AB molded plastic
* Case Material: “Green” molding compound, UL flammability classification 94V-0, (No Br. Sb. CI. ) "Halogen-free"
* Polarity : As marked on the body
* Wight : 2.0275grams(Approximate)
* Lead free finish, RoHS comp
