MBR2090CTG, MBR2080CTG Switch-mode Power Rectifiers

MBR2090CTG Description

MBR2080CTG, MBR2090CTG, MBR20100CTG Switch-mode Power Rectifiers This series uses the Schottky Barrier principle with a platinum barrier metal.These .

MBR2090CTG Features

* Features
* 20 A Total (10 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* Low Forward Voltage
* 175°C Operating Junction Temperature
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Low Power Loss/High Efficiency
* High Surge Capacit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2090CTG, MBR2080CTG. Please refer to the document for exact specifications by model.

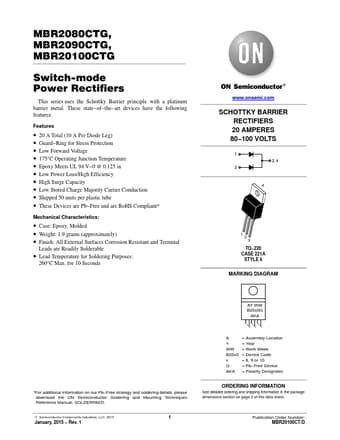

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR2090CTG, MBR2080CTG
Manufacturer
ON Semiconductor ↗
File Size
79.90 KB
Datasheet
MBR2080CTG-ONSemiconductor.pdf
Description
Switch-mode Power Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR2090CTG, MBR2080CTG.
Please refer to the document for exact specifications by model.
