MBR2090CT-M3 Dual High Voltage Trench MOS Barrier Schottky Rectifier

MBR2090CT-M3 Description

www.vishay.com MBR2090CT-M3, MBR20100CT-M3 Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier TMBS ® TO-220AB PI.

MBR2090CT-M3 Features

* Trench MOS Schottky technology
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definiti

MBR2090CT-M3 Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application. MECHANICAL DATA Case: TO-220AB Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Termin

📥 Download Datasheet

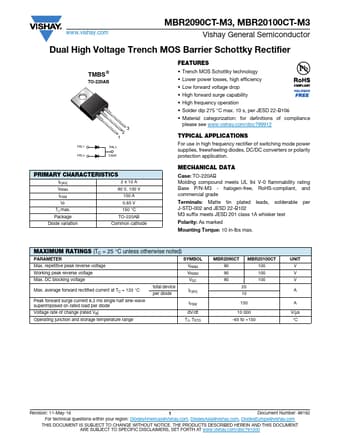

Preview of MBR2090CT-M3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR2090CT-M3
Manufacturer
Vishay ↗
File Size
118.17 KB
Datasheet
MBR2090CT-M3-Vishay.pdf
Description
Dual High Voltage Trench MOS Barrier Schottky Rectifier
