MBR2090CTG-1, MBRB2080CTG Schottky Rectifier

MBR2090CTG-1 Description

MBRB20CTG, MBR20CTG-1 Vishay High Power Products Schottky Rectifier, 2 x 10 A MBRB20CTG MBR20CTG-1 Base common cathode 2 Base common cathode 2 2 .
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

MBR2090CTG-1 Features

* 150 °C TJ operation
* Center tap D2PAK and TO-262 packages
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring enhanced rugged

MBR2090CTG-1 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2090CTG-1, MBRB2080CTG. Please refer to the document for exact specifications by model.

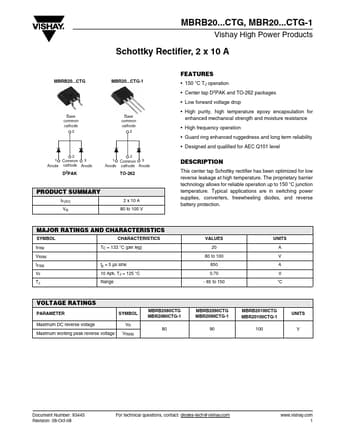

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR2090CTG-1, MBRB2080CTG
Manufacturer
Vishay ↗
File Size
119.00 KB
Datasheet
MBRB2080CTG-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR2090CTG-1, MBRB2080CTG.
Please refer to the document for exact specifications by model.
