MBR2090CT-1PbF, MBR20CT-1PbF SCHOTTKY RECTIFIER

MBR2090CT-1PbF Description

Bulletin PD-21019 rev.C 01/07 MBRB20CTPbF MBR20CT-1PbF SCHOTTKY RECTIFIER 20 Amp IF(AV) = 20Amp VR = 80/ 100V Major Ratings and Characteristics Char.
Features Units A A V A V °C This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

MBR2090CT-1PbF Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 150° C TJ operation Center tap TO-220, D2Pak and TO-262 packages Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2090CT-1PbF, MBR20CT-1PbF. Please refer to the document for exact specifications by model.

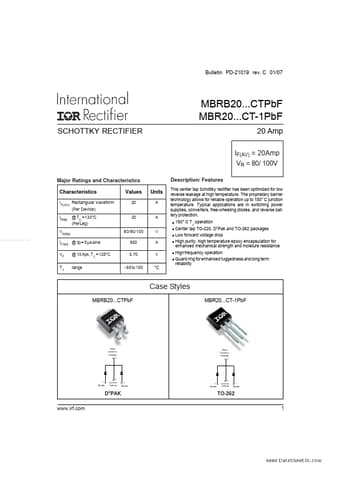

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR2090CT-1PbF, MBR20CT-1PbF
Manufacturer
International Rectifier
File Size
285.97 KB
Datasheet
MBR20CT-1PbF_InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR2090CT-1PbF, MBR20CT-1PbF.
Please refer to the document for exact specifications by model.
