MP402W, MP4005W - Single Phase Bridge Rectifier

MCC

📥 Download Datasheet

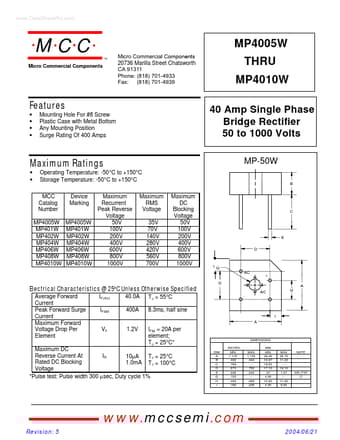

MP402W Datasheet Preview — This datasheet PDF includes multiple part numbers: MP402W, MP4005W. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number: MP402W, MP4005W
Manufacturer: MCC
File Size: 130.88 KB
Datasheet: MP4005W_MCC.pdf
Description: Single Phase Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: MP402W, MP4005W.
Please refer to the document for exact specifications by model.

MP402W Product details

Features

Mounting Hole For #8 Screw Plastic Case with Metal Bottom Any Mounting Position Surge Rating Of 400 Amps Maximum Ratings.
Operating Temperature: -50 °C to +150°C Storage Temperature: -50°C to +150°C Device Marking Maximum RMS Voltage 35V 70V 140V 280V 420V 560V 700V Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum Recurrent Peak Reverse Voltage MP4005W MP4005W 50V MP401W MP401W 100V MP402W MP402W 200V MP404W MP40.
