MP4027GJ, MP4027 Offline LED Controller

MP4027GJ Description

The Future of Analog IC Technology MP4027 Primary-Side Control, Offline LED Controller with Active PFC, NTC and PWM Dimming .
The MP4027 is a primary-side-control, offline LED lighting controller.

MP4027GJ Features

* including over-voltage protection (OVP), short-circuit protection (SCP), primary-side over-current protection (OCP), brown-out protection, over-temperature protection (OTP), cycle-by-cycle current limit, VCC under-voltage lockout (UVLO), and autorestart function. FEATURES
* Real-Current Contro

MP4027GJ Applications

* This simplifies LED-lighting-system design significantly by eliminating the secondary-side feedback components and the optocoupler. The MP4027 integrates power factor correction (PFC) and valley switching mode to reduce MOSFET switching losses. The MP4027 has NTC function and allows PWM dimming. To

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP4027GJ, MP4027. Please refer to the document for exact specifications by model.

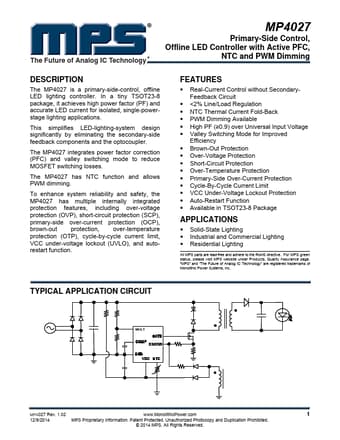

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP4027GJ, MP4027
Manufacturer
MPS
File Size
648.71 KB
Datasheet
MP4027-MPS.pdf
Description
Offline LED Controller
Note
This datasheet PDF includes multiple part numbers: MP4027GJ, MP4027.
Please refer to the document for exact specifications by model.
