MP4026 Offline LED Controller

MP4026 Description

The Future of Analog IC Technology MP4026 Primary-Side-Control, Offline LED Controller with Active PFC .
The MP4026 is a primary-side-control, offline LED controller that achieves high-power factor and accurate LED current for isolated, singlepower-stage.

MP4026 Features

* greatly enhance system reliability and safety. These features include over-voltage protection, short-circuit protection, primary-side over-current protection, brown out protection, cycle-by-cycle current limiting, VCC under-voltage lockout, and auto-restart over-temperature protection. FEATURES

MP4026 Applications

* in a tiny TSOT23-6 package. It is the next generation of the successful MP4021A. The proprietary realcurrent-control method accurately controls LED current from primary-side information with good line and load regulation. The primary-side-control eliminates the secondary-side feedback components and

📥 Download Datasheet

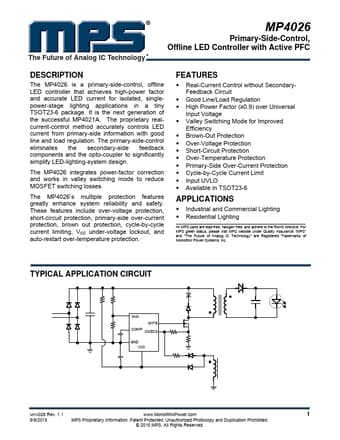

Preview of MP4026 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP4026
Manufacturer
MPS
File Size
558.82 KB
Datasheet
MP4026-MPS.pdf
Description
Offline LED Controller
