1N4942G FAST RECOVERY GLASS PASSIVATED RECTIFIERS

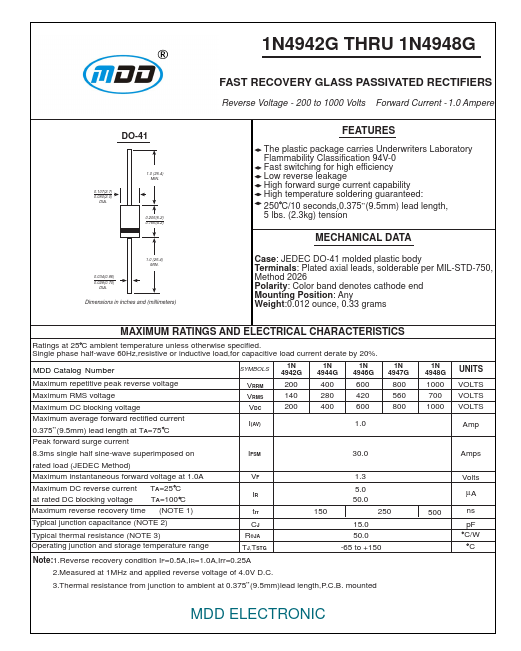

📥 Download Datasheet Datasheet Preview Page 1

Description

1N4942G THRU 1N4948G FAST RECOVERY GLASS PASSIVATED RECTIFIERS Reverse Voltage - 200 to 1000 Volts Forward Current - 1.0 Ampere DO-41 0.107(2.7) 0..

📥 Download Datasheet

Preview of 1N4942G PDF

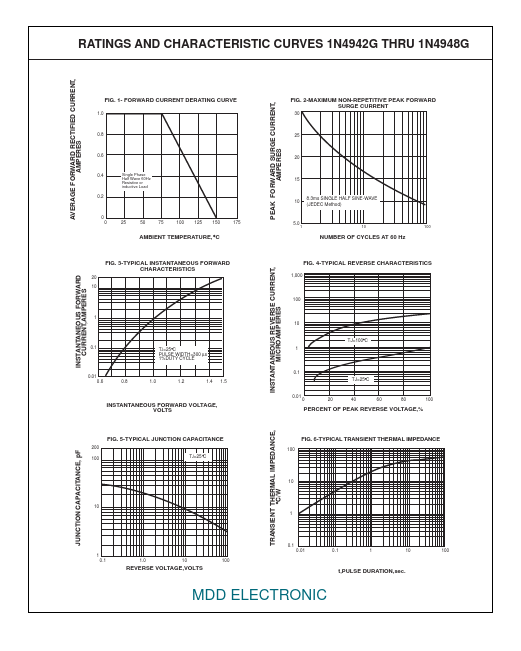

datasheet Preview Page 2

Datasheet Specifications

Part number
1N4942G
Manufacturer
MDD
File Size
69.28 KB
Datasheet
1N4942G-MDD.pdf
Description
FAST RECOVERY GLASS PASSIVATED RECTIFIERS

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA
