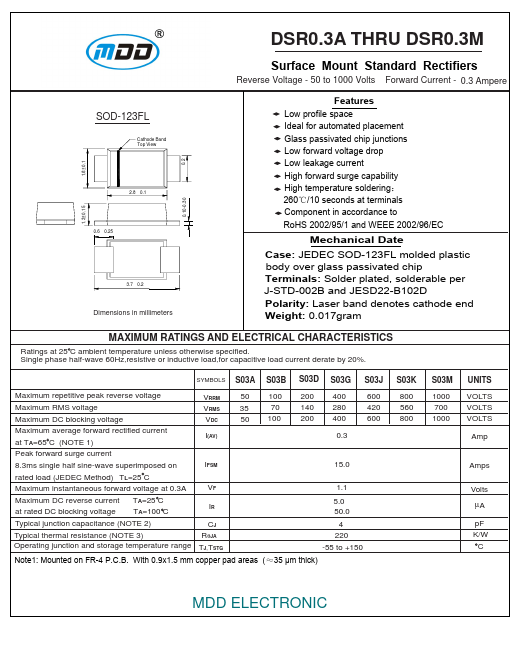

DSR0.3B, DSR0.3A - Surface Mount Standard Rectifiers

Datasheet Details

Part number	DSR0.3B, DSR0.3A
Manufacturer	MDD
File Size	385.55 KB
Description	Surface Mount Standard Rectifiers
Datasheet	DSR0.3A-MDD.pdf
Note	This datasheet PDF includes multiple part numbers: DSR0.3B, DSR0.3A. Please refer to the document for exact specifications by model.

Low profile space Ideal for automated placement Glass passivated chip junctions Low forward voltage drop Low leakage current High forward surge capability High temperature soldering： 260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC Mechanical Date Case: JEDEC SOD-123FL molded plastic body over glass passivated chip Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D Polarity: Laser band denotes cathode end Weight: 0.017gram 1.3± 0.15 M.
