DSR1K, DSR1A - SUFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

MDD

DSR1K Description

DSR1A THRU DSR1M SOD-123FL Cathode Band Top View 2.80.1 0.2 SUFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts For.

DSR1K Applications

* Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.8± 0.1 0.10-0.30 1.3± 0.15 0.60.25 3.70.2 Dimensions in millimeters MECHANICAL DATA Case : JEDEC SOD-123FL molded plastic body ov

📥 Download Datasheet

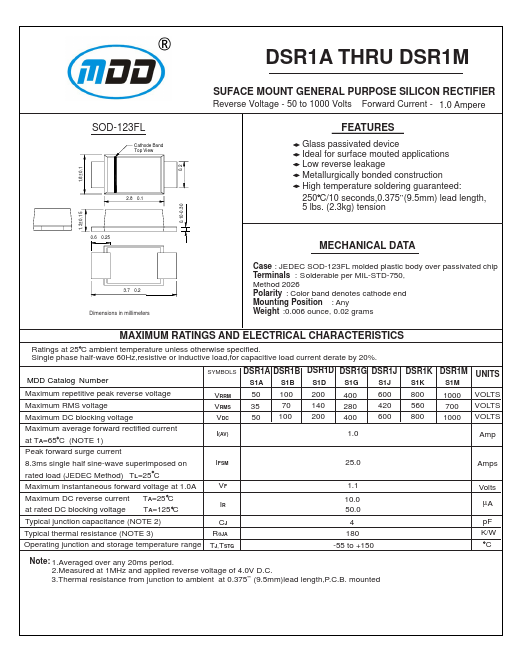

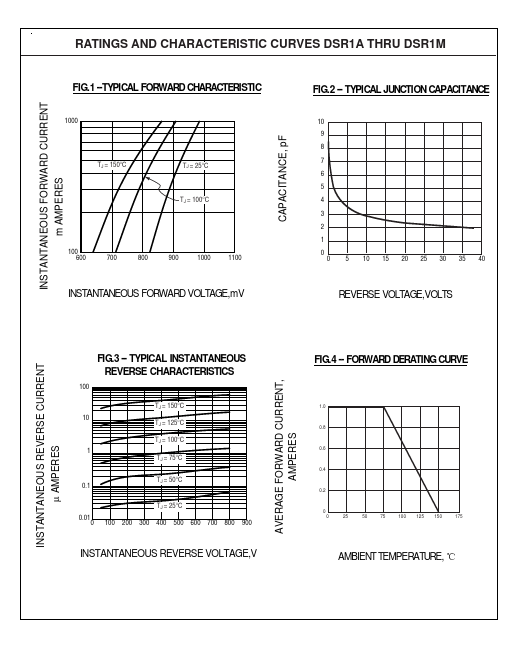

DSR1K Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1K, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DSR1K, DSR1A
Manufacturer: MDD
File Size: 460.35 KB
Datasheet: DSR1A-MDD.pdf
Description: SUFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER
Note: This datasheet PDF includes multiple part numbers: DSR1K, DSR1A.
Please refer to the document for exact specifications by model.
