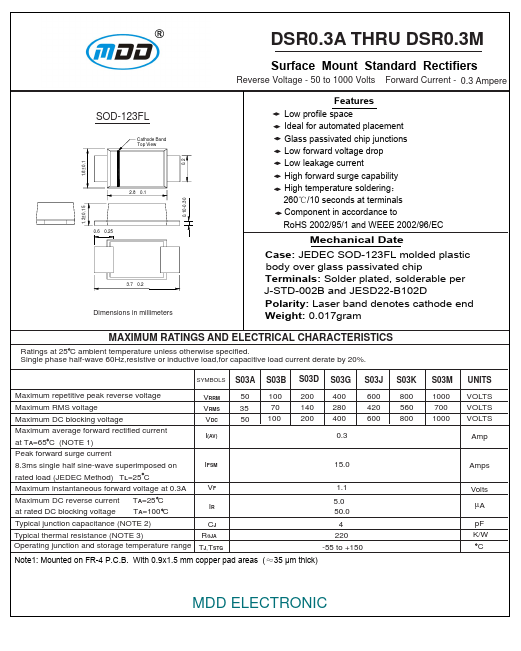

DSR0.3A - Surface Mount Standard Rectifiers

Datasheet Details

Part number	DSR0.3A
Manufacturer	MDD
File Size	385.55 KB
Description	Surface Mount Standard Rectifiers
Datasheet	DSR0.3A-MDD.pdf

Low profile space Ideal for automated placement Glass passivated chip junctions Low forward voltage drop Low leakage current High forward surge capability High temperature soldering： 260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC Mechanical Date Case: JEDEC SOD-123FL molded plastic body over glass passivated chip Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D Polarity: Laser band denotes cathode end Weight: 0.017gram 1.3± 0.15 M.
