1N5399G

GLASS PASSIVATED RECTIFIER

1N5399G Features

* Low reverse leakage

* Glass passivated chip juntion

* High forward surge current capability

* High temperature soldering guaranteed 260°C/10 seconds /.0375" (9.5mm) lead length

* RoHS and REACH compliance DO204AC (DO-15) Mechanical Data Case: Epoxy: Terminals: Polarity: Moun

1N5399G General Description

Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage Max Average Forward Rectified Current Peak Forward Surge Current 1N5391 G 50 35 50 1N5393 G 200 140 200 1N5394 G 300 210 300 1N5395 G 400 280 400 1.5 50 1N5397 G 600 420 600 1N5398 G 800 560 800 1N5399 G 1000 700 1000 .

1N5399G Datasheet (567.41 KB)

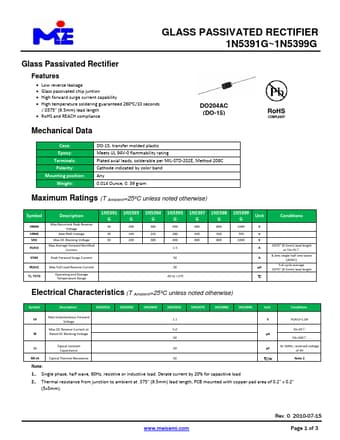

Preview of 1N5399G PDF

Datasheet Details

Part number:

1N5399G

Manufacturer:

MEI SEMI

File Size:

567.41 KB

Description:

Glass passivated rectifier.
