1N5399S - 1.5A RECTIFIER

Datasheet Summary

Features

  • Fast Switching for High Efficiency.
  • High Current Capability and Low Forward Voltage Drop.
  • Low Reverse Leakage Current.
  • Surge Overload Rating to 50A Peak.
  • Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data.
  • Case: DO-41, DO-15.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020C.
  • Terminals: Finish ⎯ Tin. Solderable per MIL-STD-202, Method 208.

📥 Download Datasheet

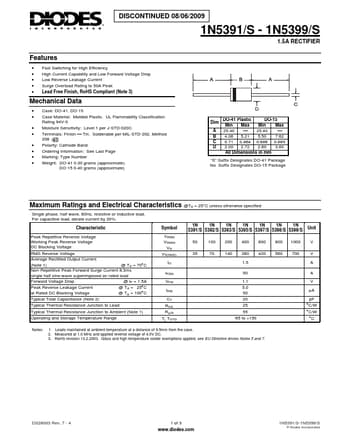

Datasheet preview – 1N5399S
