1N5399G - GENERAL PURPOSE RECTIFIER

This page provides the datasheet information for the 1N5399G, a member of the 1N5391 GENERAL PURPOSE RECTIFIER family.

Datasheet Summary

Features

  • 1.5 amps, 50 to 1000V.
  • Available with glass passivated chip junction, suffix G.
  • Low forward voltage drop.
  • High reliability.
  • Alernate for RL151 ~ RL157.

📥 Download Datasheet

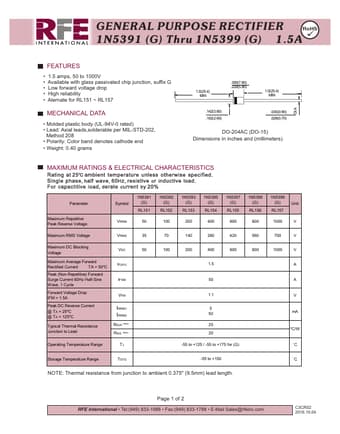

Datasheet preview – 1N5399G

Datasheet Details

Part number 1N5399G
Manufacturer RFE
File Size 483.47 KB
Description GENERAL PURPOSE RECTIFIER
Datasheet download datasheet 1N5399G Datasheet
