1N5399SG - GLASS PASSIVATED SILICON RECTIFIER

This page provides the datasheet information for the 1N5399SG, a member of the 1N5391SG GLASS PASSIVATED SILICON RECTIFIER family.

Datasheet Summary

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension.

📥 Download Datasheet

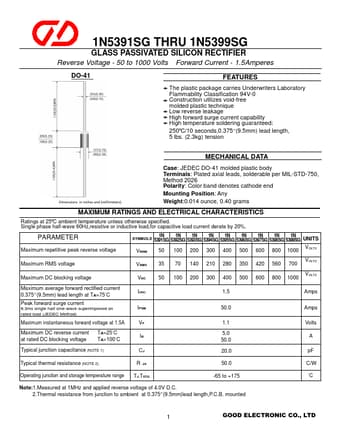

Datasheet preview – 1N5399SG

Datasheet Details

Part number 1N5399SG
Manufacturer GOOD ELECTRONIC
File Size 145.05 KB
Description GLASS PASSIVATED SILICON RECTIFIER
